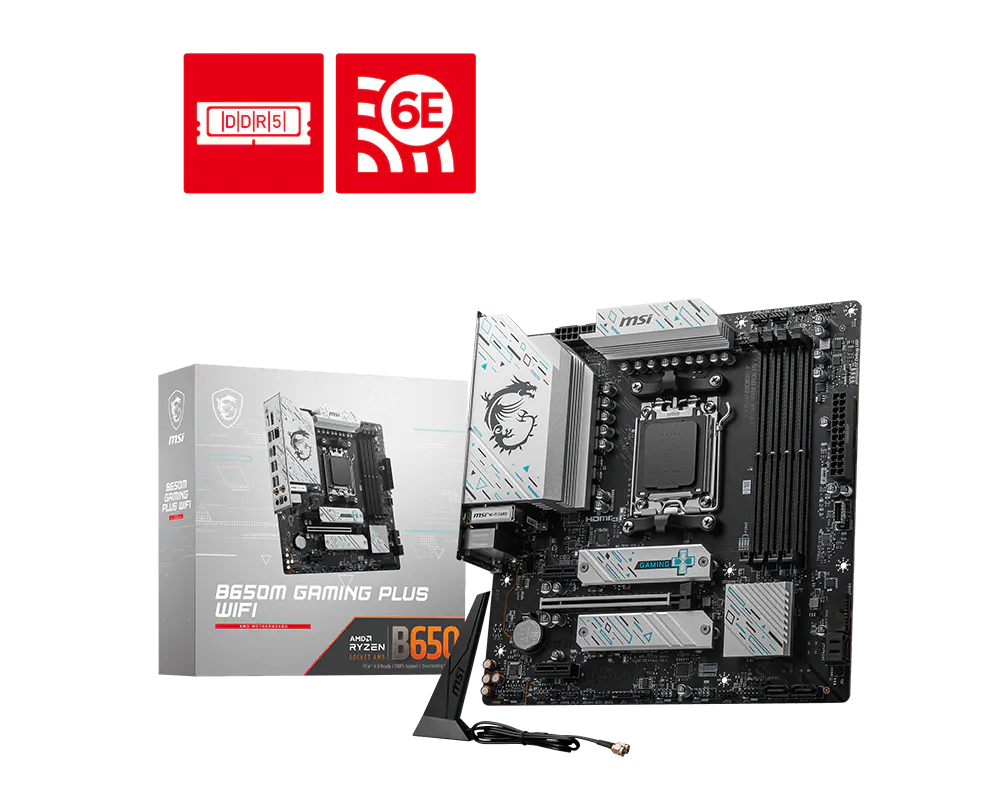

MSI B650M GAMING PLUS WIFI AMD B650 AM5 DDR5 Wi-Fi 6E Micro-ATX Motherboard

Product Overview

The MSI B650M GAMING PLUS WIFI uses the AMD B650 chipset and AM5 socket for AMD Ryzen 9000, 8000 and 7000 Series desktop processors. Its Micro-ATX, 243.84 × 243.84 mm layout is designed for a case that supports that form factor. Confirm the exact processor against MSI’s CPU support list and the installed BIOS before building.

Its memory configuration is 4 × DDR5 UDIMM, dual channel, up to 256GB; AMD EXPO; up to 7200+ MHz OC by configuration. Overclocked data rates are ceilings for suitable hardware, not guaranteed speeds for every CPU and DIMM combination. Check MSI’s memory compatibility list when planning a high-capacity or high-speed kit.

For a graphics card and expansion, the board provides PCIe 4.0 x16-shaped primary slot: x16/x4 with Ryzen 9000/7000, x8/x4 or x4/x4 with selected Ryzen 8000; two PCIe 3.0 x1 slots. The board’s HDMI or DisplayPort output depends on a processor with integrated graphics; a processor without it needs a discrete graphics card for display output.

For storage, it provides 2 × PCIe 4.0 x4 M.2 (M2_2 x2 with Ryzen 8500/8300); 4 × SATA 6Gb/s. This gives the build both M.2 and SATA options, subject to the slot and processor restrictions listed in MSI’s specifications.

Network connections are Realtek 2.5GbE; Wi-Fi 6E; Bluetooth 5.3. Display connections are HDMI 2.1 and DisplayPort 1.4, up to 4K/60Hz; require CPU integrated graphics. Its USB provision is Rear: 4 × USB 5Gbps Type-A, 3 × USB 10Gbps Type-A, 1 × USB 10Gbps Type-C; front headers: 1 × USB 10Gbps Type-C, 2 × USB 5Gbps Type-A, 4 × USB 2.0. The 6GHz Wi-Fi band, where applicable, depends on local rules and operating-system support.

Cooling connections include 1 CPU fan, 1 pump fan, 3 system fan headers; 2 addressable RGB and 2 RGB headers. Audio uses Realtek ALC897, 7.1-channel HD audio. This is a practical fit for a Micro-ATX build when its processor, storage and rear I/O match the parts you plan to install.
