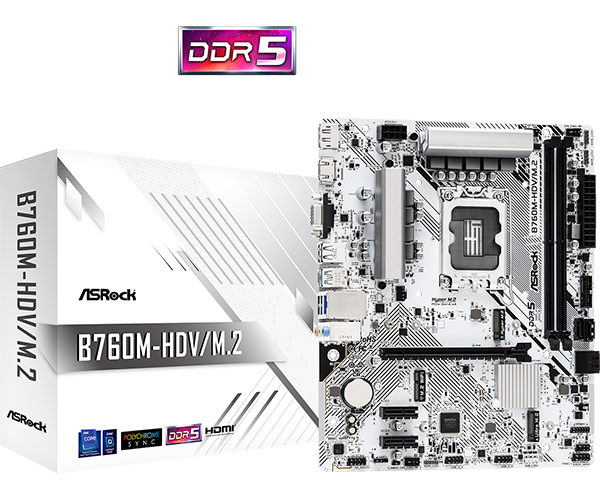

ASRock B760M-HDV/M.2 Intel B760 LGA1700 DDR5 Micro-ATX Motherboard
Product Overview for ASRock B760M-HDV/M.2 Motherboard, UAE
The ASRock B760M-HDV/M.2 is a compact Intel B760 micro-ATX motherboard with an LGA1700 socket. ASRock officially lists support for 14th, 13th and 12th Gen Intel Core processors. It uses two DDR5 DIMM slots in a dual-channel configuration and supports up to 128GB of non-ECC, unbuffered memory. Memory speeds up to 7200+MHz (OC) are listed for supported one-DIMM-per-channel configurations, with Intel XMP 3.0 support. Actual memory speed depends on the processor, module layout and selected memory kit.
The main graphics expansion slot is a CPU-connected PCIe 4.0 x16 slot operating at x16, while two chipset-connected PCIe 3.0 x1 slots support additional cards. Storage includes one PCIe 4.0 x4 M.2 slot, one PCIe 3.0 x4 M.2 slot and four SATA3 6Gb/s connectors. SATA RAID 0, 1, 5 and 10 are supported. A separate M.2 Key E socket accepts a compatible 2230 WiFi and Bluetooth module, but the wireless module is not included.
Wired networking is provided by a Dragon RTL8125BG 2.5 Gigabit Ethernet controller. Rear connectivity includes USB 3.2 Gen1 Type-C, three USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, HDMI, DisplayPort 1.4, D-Sub, RJ-45 and three audio jacks. Display outputs require an Intel processor with integrated graphics. Audio uses the Realtek ALC897 7.1-channel codec.
Cooling and lighting connections include CPU fan, CPU/water-pump and two chassis/water-pump headers, one RGB header and three addressable RGB headers. The board measures 24.4cm × 20.1cm and supports Windows 10 64-bit and Windows 11 64-bit.
Technical Specifications
What’s in the Box
- Motherboard
- User Manual
- SATA Cable(s) (If Included)
- Wi-Fi Antenna (If Included)
- Accessories (If Included)
