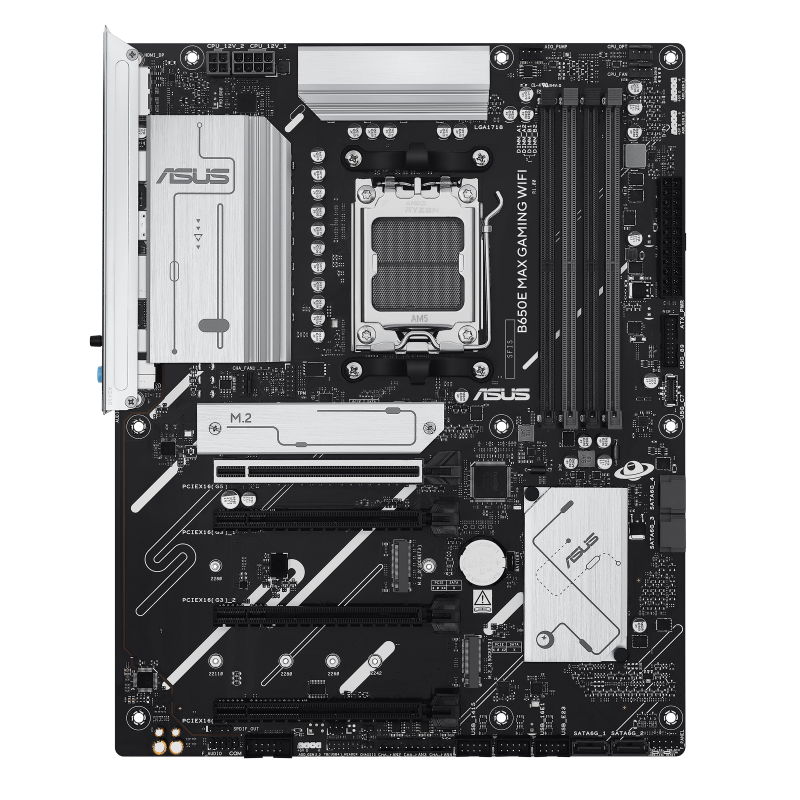

ASUS B650E MAX Gaming WiFi motherboard front view
Motherboard

ASUS B650E MAX Gaming WiFi, AMD B650 AM5 DDR5 WiFi 6E ATX Motherboard

SKU: 90MB1LD0-MUVAY0

Key Features - ASUS B650E MAX Gaming WiFi Motherboard, UAE

  • Socket Type: AMD AM5
  • Chipset: AMD B650
  • Processor Support: AMD Ryzen 9000, 8000 and 7000 Series desktop processors
  • Memory Support: 4 x DDR5 DIMM slots, up to 256GB and 8000+MT/s (OC)
  • Storage Support: 3 x M.2 and 4 x SATA 6Gb/s
  • Expansion Support: PCIe 5.0 x16 and PCIe 5.0 x4 M.2 on compatible CPUs
  • Networking: Realtek 2.5Gb Ethernet, WiFi 6E and Bluetooth 5.3
  • Form Factor: ATX, 30.5 cm x 24.4 cm
🛡️ Warranty Support Support available for eligible products under warranty terms.
🚚 UAE Delivery Delivery available across the UAE.
💳 Flexible Payments Card, COD, Tabby and Tamara available at checkout.
💬 Expert Support Get help before and after buying your gaming PC.

Product Overview for ASUS B650E MAX Gaming WiFi Motherboard, UAE

The ASUS B650E MAX Gaming WiFi is an ATX motherboard built around the AMD B650 chipset and AM5 socket. ASUS lists compatibility with AMD Ryzen 9000, 8000 and 7000 Series desktop processors, with support for CPUs rated up to 170W. Four DDR5 DIMM slots support up to 256GB in dual-channel mode. Supported memory data rates reach up to 8000+MT/s (OC), subject to the installed processor, BIOS, module count and memory kit. AMD EXPO and ASUS AEMP are available for compatible memory.

With Ryzen 9000 and 7000 Series processors, the primary slot supports PCIe 5.0 x16 operation. Ryzen 8000 Series processors use CPU-dependent PCIe 4.0 x8 or x4 operation. Additional chipset slots include one PCIe 4.0 x16-size slot operating at x4 and two PCIe 3.0 x16-size slots operating at x1. The PCIe 3.0 slots share bandwidth with SATA6G_1 and SATA6G_2. Storage includes three M.2 slots, including PCIe 5.0 x4 support on a compatible CPU, plus four SATA 6Gb/s ports.

Network connectivity combines Realtek 2.5Gb Ethernet, 2x2 WiFi 6E and Bluetooth 5.3. The rear panel includes eight USB ports across USB 10Gbps, USB 5Gbps and USB 2.0, plus DisplayPort, HDMI, Ethernet and three audio jacks. Display output capability depends on the installed processor. The onboard Realtek audio solution supports 7.1-channel output with a suitable chassis front-panel audio module.

Cooling support includes CPU, CPU optional, AIO pump and four chassis-fan headers. Three Addressable Gen 2 RGB headers work with Aura Sync. BIOS FlashBack, a pre-mounted I/O shield and Q-LED Core assist with setup. The ATX board measures 30.5cm × 24.4cm.

Technical Specifications

CPU Socket AMD AM5
Chipset AMD B650
Compatible Processors AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
Memory Support DDR5, dual channel, ECC and non-ECC unbuffered memory
Maximum Memory 256GB
Memory Slots 4 x DIMM
Memory Features Up to 8000+MT/s (OC); AMD EXPO and ASUS AEMP
Primary PCIe Slot 1 x PCIe 5.0 x16 with Ryzen 9000 and 7000 Series; CPU-dependent PCIe 4.0 with Ryzen 8000 Series
Additional Expansion Slots 1 x PCIe 4.0 x16-size slot at x4 and 2 x PCIe 3.0 x16-size slots at x1; PCIe 3.0 slots share bandwidth with SATA6G_1/2
Storage Slots 3 x M.2; PCIe 5.0 x4, PCIe 4.0 x4 and PCIe 4.0 x2 support vary by CPU and slot
SATA Ports 4 x SATA 6Gb/s
RAID Support Ryzen 9000 RAID 0/1/5/10; Ryzen 8000 RAID 0/1; Ryzen 7000 RAID 0/1/10
Networking Realtek 2.5Gb Ethernet
Wi-Fi 2x2 WiFi 6E (802.11ax), 2.4/5/6GHz
Bluetooth Bluetooth 5.3
Audio Realtek 7.1-channel HD Audio codec
Rear USB Ports 4 x USB 10Gbps, 2 x USB 5Gbps and 2 x USB 2.0
Internal USB Headers 1 x USB 5Gbps Type-C connector, 1 x USB 5Gbps header and 3 x USB 2.0 headers
Display Outputs 1 x DisplayPort and 1 x HDMI; support depends on processor
Fan and Pump Headers 1 x CPU fan, 1 x CPU optional, 1 x AIO pump and 4 x chassis fan headers
RGB Support 3 x Addressable Gen 2 headers; Aura Sync
BIOS Features 256Mb UEFI AMI BIOS, BIOS FlashBack and Q-LED Core
Form Factor ATX
Dimensions 30.5 cm x 24.4 cm
Operating System Support Windows 11 and Windows 10 64-bit
Manufacturer Part Number 90MB1LD0-MVAAY0

What’s in the Box

  • Motherboard
  • User Manual
  • SATA Cable(s) (If Included)
  • Wi-Fi Antenna (If Included)
  • Accessories (If Included)

FAQ - ASUS B650E MAX Gaming WiFi Motherboard, UAE

Which processors are supported by the ASUS B650E MAX Gaming WiFi?
ASUS lists AMD Ryzen 9000, 8000 and 7000 Series desktop processors on socket AM5. Check the CPU support page for any BIOS requirement.

Does it support 256GB of DDR5 memory?
Yes. It supports up to 256GB across four DIMM slots, with attainable speeds dependent on the processor, BIOS and memory configuration.

Does this model include WiFi and Bluetooth?
Yes. ASUS lists 2x2 WiFi 6E and Bluetooth 5.3; use of the 6GHz band depends on regional regulations and operating-system support.

How many M.2 slots are included?
Three M.2 slots are included. PCIe generation and bandwidth vary by slot and installed processor.

Do all four SATA ports remain active with every expansion-card setup?
No. The PCIe 3.0 x1-mode slots share bandwidth with SATA6G_1 and SATA6G_2, so those SATA ports can be disabled when the shared slots are used.

Will the HDMI and DisplayPort outputs work with every AM5 processor?
No. Display output capability depends on the integrated graphics supported by the installed processor.
